As modern vehicles transition into software-defined, highly autonomous data centers on wheels, the electrical and electronic architectures supporting them are undergoing a profound transformation. At the heart of this vehicular revolution is the exponential growth of advanced driver-assistance systems (ADAS), high-definition surround-view cameras, LiDAR arrays, and immersive in-cabin infotainment networks.
To manage the massive streams of sensor data while keeping vehicle weight, complexity, and harness costs manageable, the automotive industry has increasingly turned to Power-over-Coax (PoC) technology. By enabling direct-current (DC) power and high-speed alternating-current (AC) bidirectional data signals to travel simultaneously over a single coaxial cable, PoC eliminates redundant wiring.
Yet, engineering reliable PoC systems presents significant hardware challenges—specifically, separating high-frequency data streams from power rails without introducing noise or signal degradation. Addressing this engineering bottleneck, TDK Corporation has announced a major expansion of its MLJ1608-G series of multi-layer inductors, engineered explicitly for automotive PoC circuits. Mass production for these advanced components officially commenced in October 2026.
Main Facts: The Engineering Mechanics of Power-over-Coax
To understand the significance of TDK’s latest component release, it is necessary to examine how Power-over-Coax operates within a modern vehicle.
Dual-Function Cabling
Traditionally, connecting an automotive camera module or remote sensor to a central Electronic Control Unit (ECU) required a cumbersome two-cable harness: one designated line for power delivery and a separate shielded line for data transmission. PoC consolidates these distinct functions into a single coaxial cable.
The advantages of this consolidation are far-reaching:
- Weight and Space Reduction: Fewer and lighter cables reduce the overall harness weight, directly contributing to improved vehicle efficiency and lower $textCO_2$ emissions for internal-combustion vehicles, as well as extended driving ranges for electric vehicles (EVs).
- Enhanced Reliability: Minimizing the number of physical connection points, cable bends, and connectors inherently lowers the probability of mechanical failure over the vehicle’s operational lifecycle.
- Streamlined Manufacturing: Simplified wiring harnesses reduce assembly times on the automotive factory floor.
The Role of Wideband Inductor Filters
Despite its elegance, a PoC architecture creates a fundamental circuit challenge: combining DC power and high-speed AC data onto the same line means they must be cleanly separated at either end before the ECU or camera serializer/deserializer (SerDes) can process them.
This separation relies on a wideband filter network composed of specialized inductors:
- Low DC Resistance: Inductors must exhibit minimal resistance to direct current, ensuring that power flows smoothly and efficiently from the power source to the remote camera or sensor without excessive voltage drops.
- High AC Impedance: Inductors must present exceptionally high impedance at high frequencies. This prevents high-speed data signals from leaking out of the communication channel and into the DC power rail.
- Broadband Stability: Because modern interfaces transmit across wide frequency spectra (ranging from tens of megahertz up to several gigahertz, depending on SerDes standards), single or cascaded inductors must maintain high impedance continuously across the entire operational range. They must also block electrical noise and voltage fluctuations originating from the power supply from coupling into and corrupting the high-speed data stream.
Chronology: The Evolution of Automotive PoC and Component Design
The adoption of Power-over-Coax did not happen overnight; it represents a gradual convergence of semiconductor SerDes advancements and passive component engineering.
- Early Adoption Phase: As early ADAS deployments standardized around high-definition digital video links (such as LVDS and emerging automotive Ethernet protocols), engineers struggled with bulky multi-wire harnesses. Early PoC implementations utilized traditional wire-wound or standard multi-layer inductors. However, these early components frequently struggled to maintain stable impedance across the widening frequency bands required by multi-megapixel surround cameras.
- The Bandwidth Expansion Era: With the integration of surround-view cameras, blind-spot monitors, and rear-view systems, operating frequencies pushed past hundreds of megahertz into the multi-gigahertz domain. Passive component manufacturers began developing specialized ferrite beads and cascaded inductor networks to broaden the impedance profile.
- Miniaturization and Space Constraints: As camera modules shrank to blend seamlessly into vehicle windshields, mirrors, and bumper fascias, component placement area (real estate) on the printed circuit board (PCB) became severely limited. Standard 2012-size (2.0 × 1.25 mm) or larger inductors proved too bulky for ultra-compact camera pods.

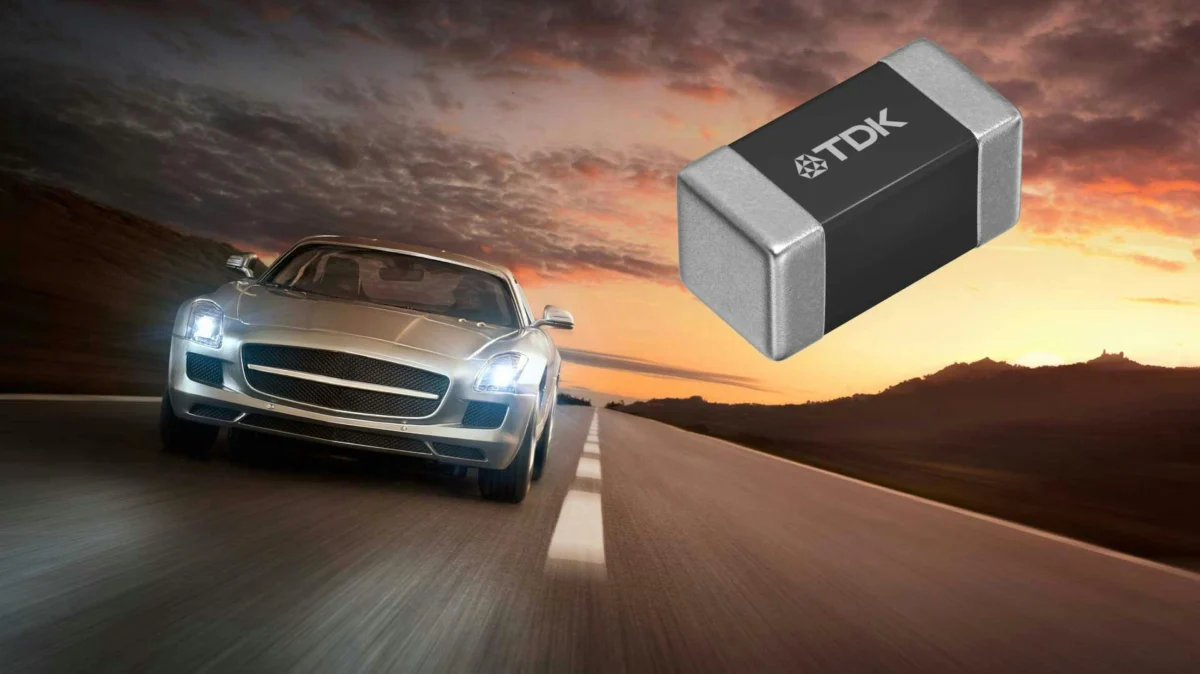

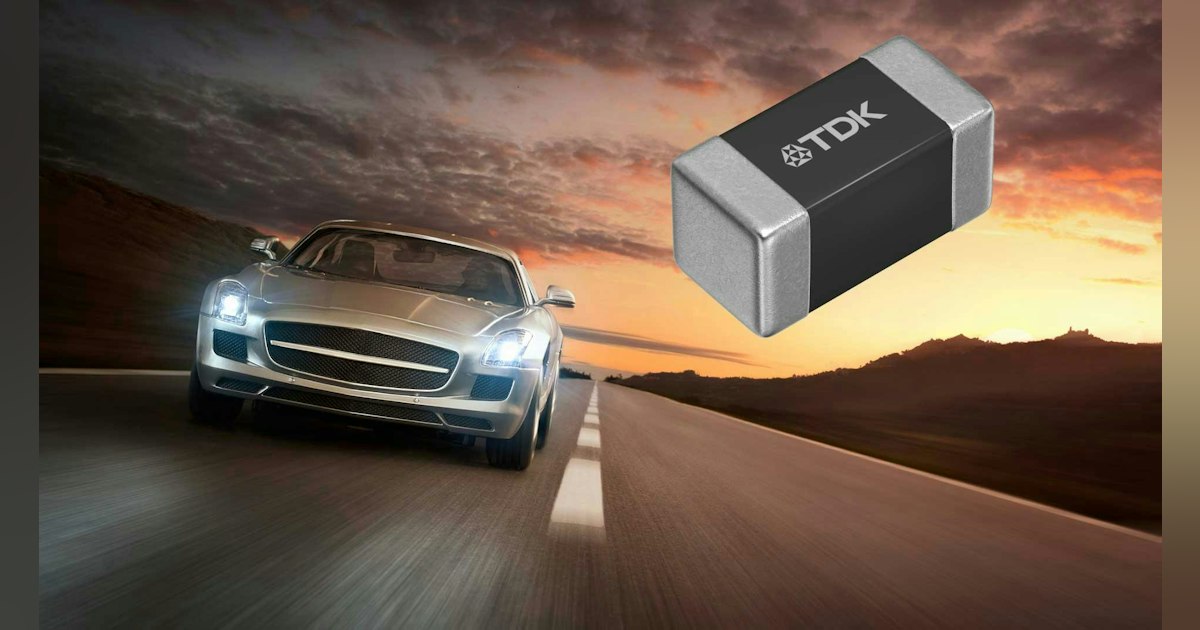

- October 2026 – TDK’s MLJ1608-G Commercialization: Marking a major milestone in passive component design, TDK officially initiated mass production of its expanded MLJ1608-G series. Measuring a compact 1.6 × 0.8 × 0.8 mm (1608 size), these multi-layer inductors deliver unprecedented impedance performance for their footprint, setting a new benchmark for automotive PoC filtering.
Supporting Data: Technical Specifications of the MLJ1608-G Series
TDK’s breakthrough in the MLJ1608-G series stems from proprietary material formulations and advanced internal structural designs. These engineering innovations allow the component to overcome historical trade-offs between physical size, inductance, and high-frequency impedance.
Comparative Performance Metrics
- Inductance Value: The MLJ1608-G achieves a high inductance of 1.2 µH, a substantial increase compared to conventional products in this size class, which typically hover around 0.56 µH.
- Impedance Boost: In the critical 300 MHz to 2 GHz frequency range, the series maintains remarkably high impedance. Specifically, within the 100- to 700-MHz range, the component delivers 1.7× to 2× higher impedance than conventional components, yielding vastly superior noise suppression capabilities.
- DC Superimposition Characteristics: Despite its diminutive 1608 footprint, the inductor exhibits excellent DC superimposition characteristics, allowing it to handle high-current applications without saturating. This makes it ideal for powering power-hungry camera sensors and auxiliary active components.
Physical Dimensions and PCB Integration
- Footprint: 1.6 × 0.8 mm with a height of 0.8 mm.
- Space Savings: The ultra-miniaturized profile directly enables tier-1 suppliers and automakers to shrink the physical dimensions of electronic control boards housed inside ADAS camera modules, freeing up valuable space for thermal management and optical lens assemblies.
Official Responses and Industry Perspective
In official product releases accompanying the October 2026 mass-production rollout, TDK representatives emphasized the company’s long-term commitment to evolving automotive networking standards.
"As vehicle architectures shift toward centralized domain controllers and multi-gigabit sensor networks, the demand for high-integrity power-over-coax filtering has never been more critical," noted TDK engineering leads. "By combining proprietary multi-layer material technologies with optimized structural design, the MLJ1608-G series solves the long-standing engineering conflict between component miniaturization and broad-bandwidth impedance stability."
Industry analysts point out that passive components—long viewed as commoditized elements in electronic bill-of-materials (BOM)—are increasingly becoming strategic differentiators. In high-speed automotive environments where a single dropped data packet can compromise an ADAS collision-avoidance calculation, the reliability of a humble inductor directly underpins functional safety.
TDK has confirmed that it will continue to expand its comprehensive lineup of inductors targeting automotive PoC applications. By leveraging a balanced portfolio of multi-layer, wire-wound, and thin-film technologies, the company aims to stay ahead of shifting market requirements, ensuring that future vehicle platforms benefit from pristine signal integrity and robust noise suppression.
Implications: What This Means for the Future of Automotive Design
The commercial availability of advanced passive components like the MLJ1608-G series carries profound implications for the automotive ecosystem, spanning vehicle safety, manufacturing economics, and environmental sustainability.
1. Fortifying Functional Safety in Autonomous Systems
As vehicles advance toward SAE Level 3 and Level 4 autonomous driving capabilities, the reliance on real-time sensor data is absolute. Forward-facing cameras, rear-view backup systems, and side-periphery sensors must transmit uncorrupted video data instantaneously to decision-making ECUs. By preventing high-frequency noise leakage and stabilizing characteristic impedance across wide bandwidths, these advanced inductors directly contribute to fault-tolerant, highly reliable ADAS networks, ultimately safeguarding vehicle occupants and pedestrians.
2. Accelerating the Transition to Software-Defined Vehicles (SDVs)
Modern software-defined vehicles rely on high-bandwidth backbone networks. As automakers upgrade in-vehicle networks to handle multi-gigabit Ethernet and advanced SerDes protocols, the physical layer must keep pace. Components that support clean power and data coexistence over simplified cabling architectures accelerate the industry’s migration toward unified zonal and domain-controller architectures.
3. Sustainability and Weight Reduction
Every gram saved in a vehicle’s wiring harness compounds into measurable energy savings over its operational lifespan. By consolidating two cables into one and enabling the use of smaller, lighter electronic housings, innovations in PoC component technology support global automotive decarbonization goals. Whether integrated into traditional internal combustion engine platforms to boost fuel economy or deployed in long-range battery electric vehicles to maximize driving range, efficient power and signal distribution plays a quiet yet vital role in automotive sustainability.
Conclusion
The evolution of Power-over-Coax technology underscores a broader truth about modern automotive engineering: macro-level vehicle transformation relies heavily on micro-level innovation. TDK’s expansion of the MLJ1608-G inductor series demonstrates how targeted advancements in materials science and component design can resolve complex electrical challenges, paving the way for safer, lighter, and more highly connected vehicles on tomorrow’s roadways.
