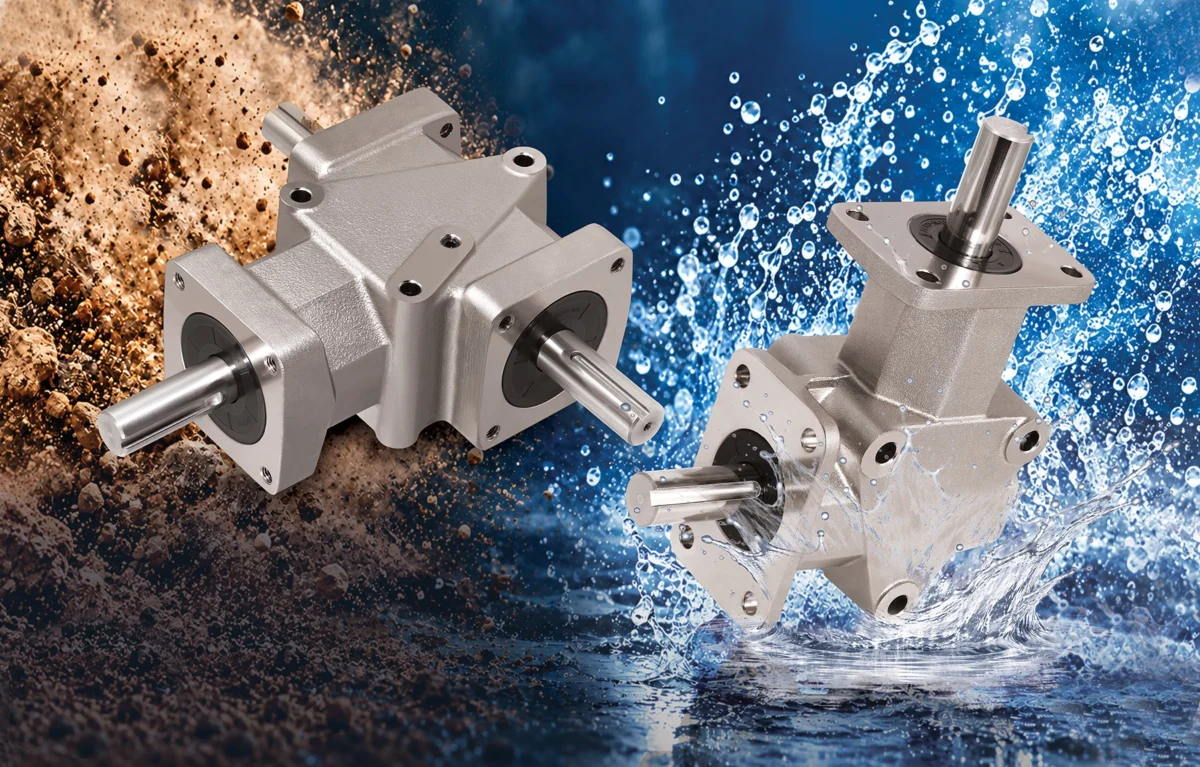

In the demanding world of industrial automation, the ability to maintain consistent power transmission in the face of harsh environmental variables is the hallmark of reliable engineering. Zero-Max, a leader in motion control solutions, has recently announced a significant evolution in its long-standing Crown Gear Drive product line. By introducing a new series of IP68-rated gear drives, the company is bridging the gap between high-performance rotational power and the stringent hygiene and durability requirements of modern processing facilities.
This development marks a milestone for the company, which has been refining its Crown Gear platform for over six decades. The new units offer robust protection against dust, debris, and water ingress, making them a strategic choice for sectors ranging from food and beverage packaging to outdoor marine installations.
Main Facts: The New Standard in Durability
The core innovation of the new Crown Gear Drive series lies in its certified IP68 ingress protection. For industrial engineers, the "IP68" rating is significant: it confirms that these units are completely dust-tight and capable of withstanding prolonged submersion in water, as well as the high-pressure, high-temperature washdown protocols common in sanitary production environments.
Key Technical Specifications
- Ingress Protection: Fully IP68-rated (tested by independent laboratories).
- Construction: Nickel-plated aluminum housings paired with high-strength stainless-steel shafts.
- Sealing: Advanced NBR-covered shaft seals designed for chemical resistance.
- Lubrication: Factory-sealed with H1 food-grade grease, rendering the units "lubricated for life."
- Operating Temperature: Standard range of -4°F to +212°F (-20°C to +100°C).
- Performance: Capable of handling speeds up to 2,000 rpm.
- Versatility: Available in 1:1 and 2:1 ratios with two-way, three-way, and counter-rotating configurations.
The design philosophy prioritizes a "water-shedding" exterior. By eliminating crevices and sharp angles where bacteria, cleaning agents, or debris might accumulate, Zero-Max has engineered a drive that meets the stringent cleanliness standards required in food and pharmaceutical processing plants.
A Chronology of the Crown Gear Platform
To understand the weight of this announcement, one must look at the history of the Crown Gear brand. For over 60 years, Zero-Max’s Crown Gear drives have served as the industry benchmark for compact, right-angle power transmission.
- The Early Decades (1960s–1980s): Zero-Max established its reputation by providing high-precision, low-backlash gear drives that enabled mechanical synchronization in agricultural and textile machinery. The platform became known for its reliability in tight spaces.
- The Era of Specialization (1990s–2010s): As the company expanded, it began tailoring the platform for niche applications, such as the vertical-opening glass wall systems on luxury cruise ships and specialized automated medical equipment.
- The Shift to Harsh Environments (2010s–2023): Responding to the market’s need for better protection, Zero-Max introduced the IP65-rated series. While successful, the industry’s push toward fully automated, washdown-heavy facilities created a demand for even higher protection.
- The IP68 Breakthrough (2024–2026): After extensive independent testing and iterative design cycles, the current IP68-rated line was finalized. This transition represents the most comprehensive upgrade in the product line’s history, integrating modern sealing technology without sacrificing the legacy form factor.
Supporting Data: Why IP68 Matters
In the context of industrial engineering, the difference between IP65 (dust-tight and protected against water jets) and IP68 (dust-tight and protected against continuous immersion) is the difference between operational survival and failure.
Environmental Resistance
The selection of materials for the new series was not arbitrary. The nickel-plated aluminum housing provides a superior strength-to-weight ratio while resisting the corrosive effects of caustic washdown chemicals. Stainless-steel shafts ensure that the most vulnerable rotating components remain free from rust, even when exposed to high-humidity environments or condensation cycles.
Internal Mechanical Integrity
The drive utilizes AGMA Class 10 spiral bevel gears. These are hardened and ground to ensure maximum power density in a small package. The inclusion of hardened ball bearings ensures that the drive maintains its low-backlash performance over millions of cycles. By factory-sealing these units with H1 food-grade grease, Zero-Max eliminates the risk of human error in maintenance, ensuring that the lubricant remains contaminant-free for the entire lifespan of the component.
Performance Flexibility
With shaft diameters ranging from 3/8-inch to 1 inch, the new drives are designed to integrate seamlessly into existing machinery. The ability to choose between 1:1 and 2:1 ratios, alongside various directional configurations, allows engineers to design complex power transmission pathways that can navigate around structural obstacles without needing a secondary, unprotected gearbox.
Official Perspectives and Market Implications
According to Zero-Max, the new IP68 models were specifically designed to be interchangeable with the existing IP65-rated units. This is a critical strategic move for current customers. By maintaining the same exterior dimensions, appearance, and price point as the IP65 predecessors, Zero-Max has provided a seamless upgrade path for plant managers looking to improve the longevity of their existing lines.
Implications for the Food and Beverage Industry
The primary driver for this product release is the increasing regulatory pressure on food processing safety. Equipment that is difficult to sanitize is now considered a liability. The smooth-surface design of these drives helps maintenance teams meet rigorous safety audits, as the drives are less likely to harbor pathogens or chemical residue after a sanitation cycle.
Implications for Outdoor and Marine Applications
Beyond food processing, the IP68 rating opens new doors in the outdoor equipment sector. Rain, sunlight, and extreme temperature fluctuations are the primary enemies of outdoor motion control systems. By sealing the drive against the elements, Zero-Max is essentially "future-proofing" equipment in agricultural, maritime, and solar-tracking applications where regular maintenance is either impossible or prohibitively expensive.
Looking Toward the Future of Motion Control
The release of the IP68-rated Crown Gear Drive is not merely a product update; it is an indication of where the power transmission market is headed. As industries move toward "lights-out" manufacturing and fully automated processing, the demand for "install-and-forget" components will only increase.
Zero-Max, operating out of its Minneapolis, Minnesota headquarters, has signaled that they are prepared to continue customizing these units. While the standard line is ready for immediate deployment, the company emphasizes that their engineering team is available for application-specific modifications—ranging from custom shaft lengths and external threads to specialized coatings for extreme chemical exposure.
For engineers and procurement specialists, this launch provides a clear signal: the trade-off between power density and environmental protection is no longer necessary. By combining six decades of mechanical expertise with state-of-the-art ingress protection, Zero-Max has created a component that is as at home on a high-speed packaging line as it is on the deck of a vessel in the open ocean.
How to Access the Technology
The new IP68-rated Crown Gear Drives are currently in stock and available for immediate order. For those seeking technical white papers, CAD models, or custom configuration quotes, the company’s official website at zero-max.com serves as the central hub for specifications and engineering support.
As the industry continues to evolve, Zero-Max’s commitment to the Crown Gear platform ensures that regardless of how extreme the environment becomes, the power transmission remains reliable, safe, and precise.
